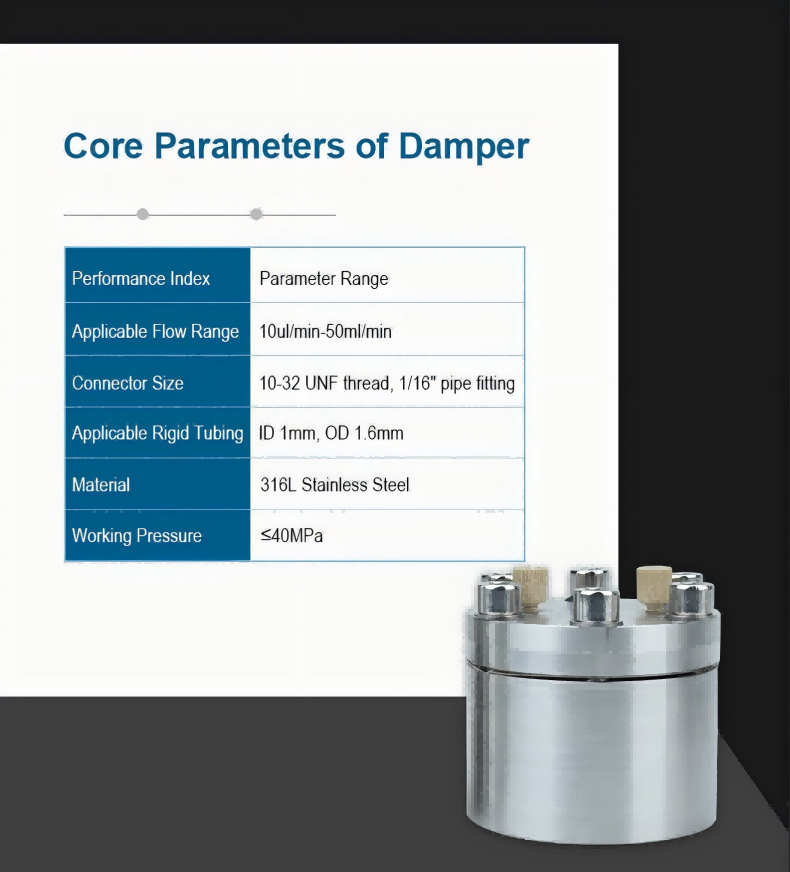

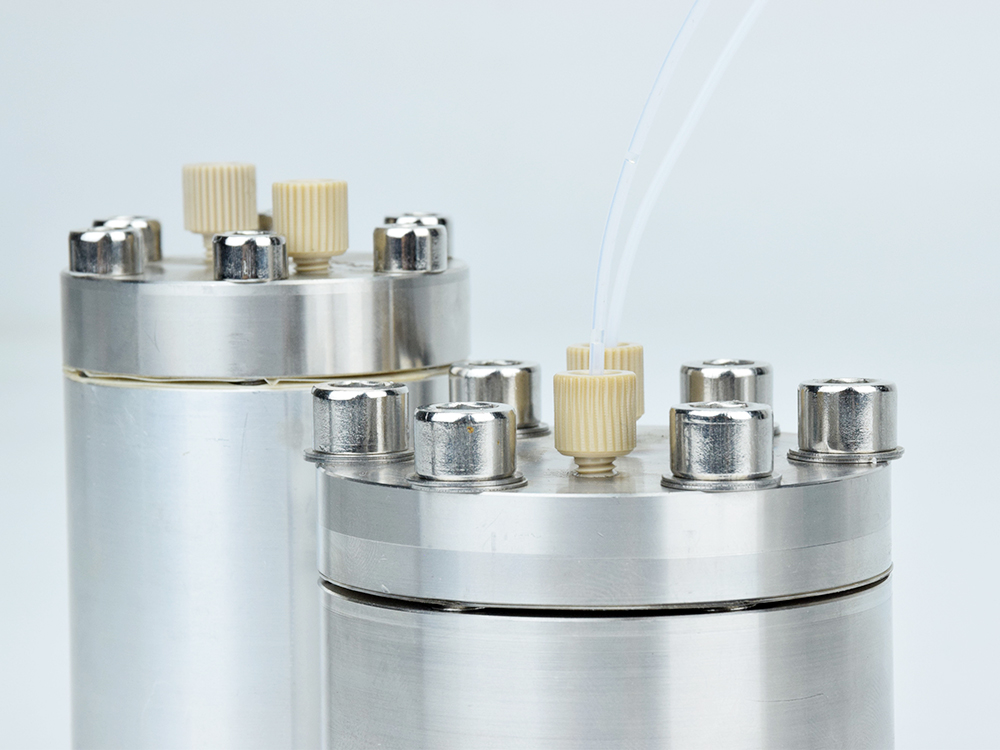

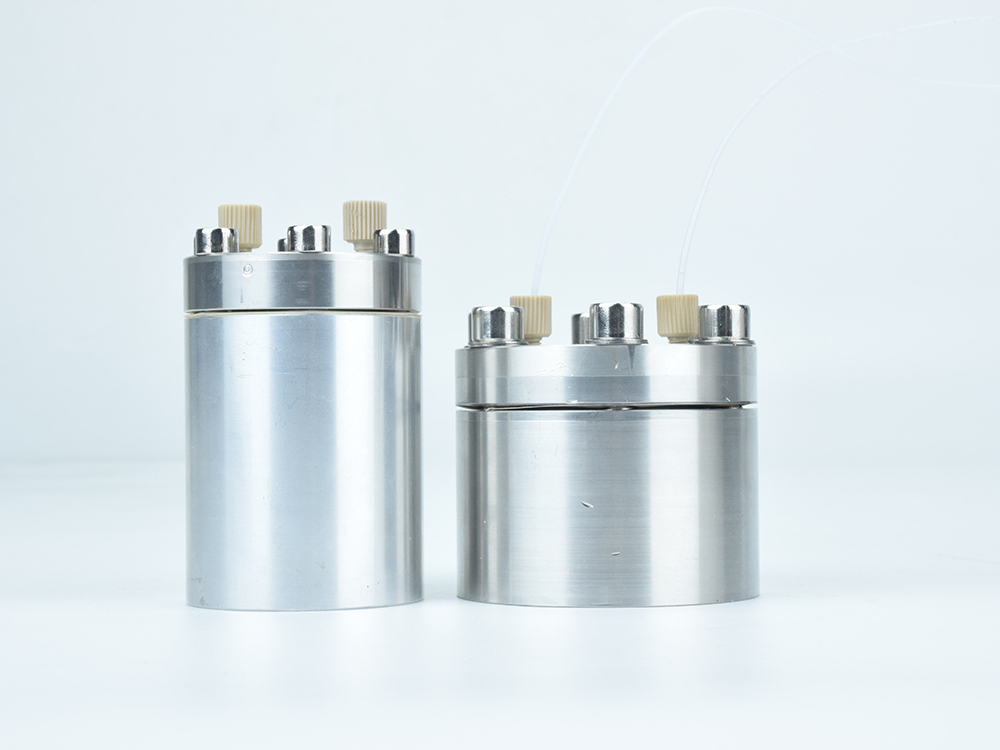

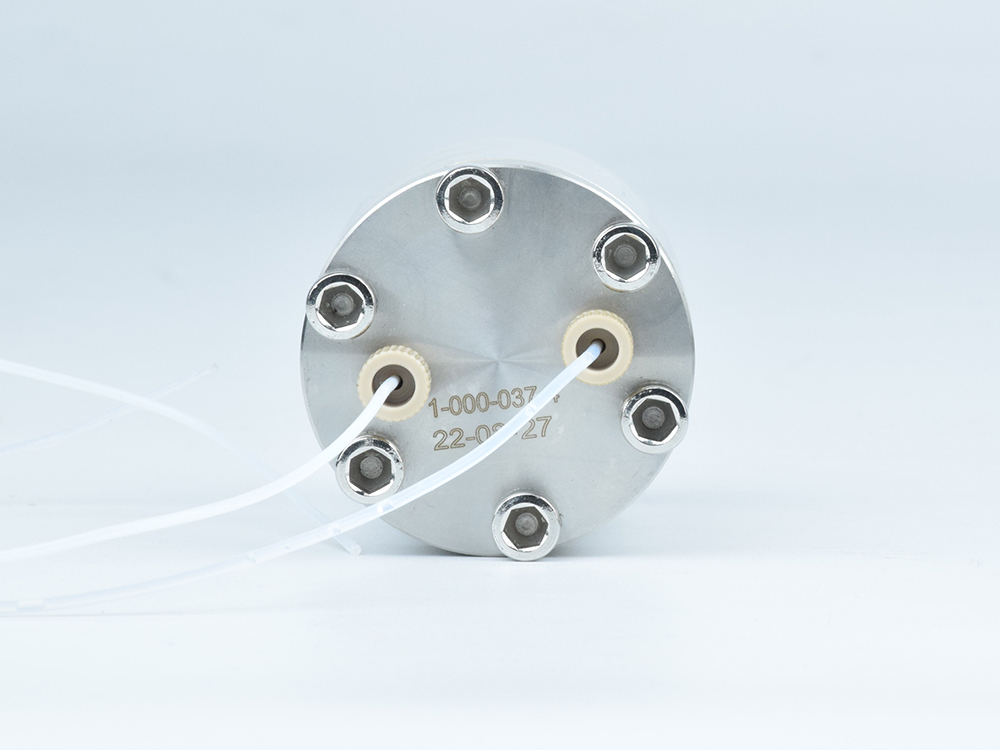

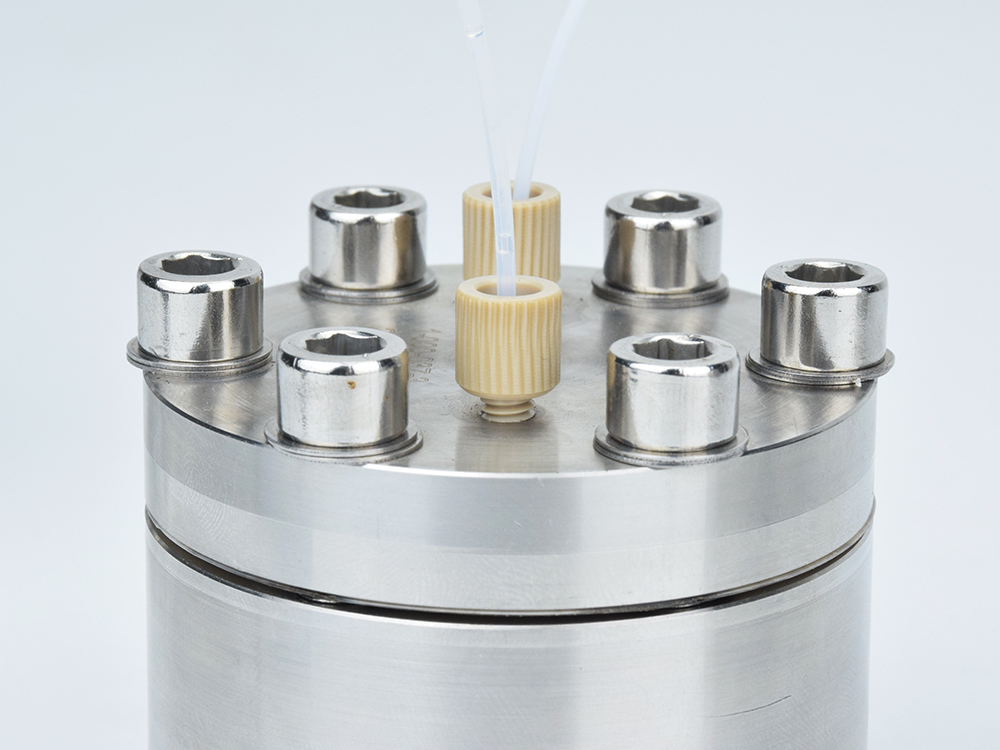

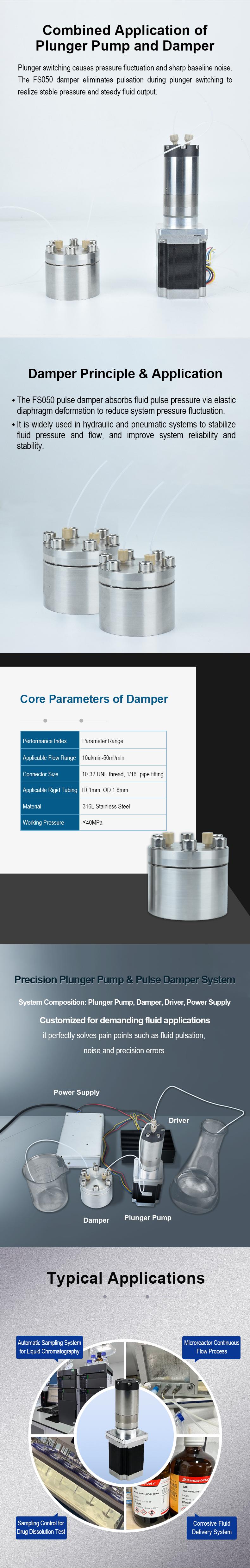

Pulse Damper FS050 Connect the outlet hose of the pulse damper FS050 to the damper inlet, and connect an outlet hose from the outlet fitting to the container to form a typical application mode. Applicable flow range: 50 μL/min - 50 mL/min, 10-32 UNF thread, 1/16" tube fitting. Start the plunger pump. When the fluid flows through the damper, the turbulent flow is rectified under the action of fluid pressure, eliminating the pulsation generated by plunger switching and achieving stable fluid output.
10ul/min-50ml/min
10-32 UNF thread, 1/16" tube fitting
≤40MPa
Share:
We pride ourselves on customer service and are committed to providing five-star support. If you have any questions about our products, please feel free to call or send an email to us.
Flow Range5μL/min-32mL/min
Motor Speed60rpm
Working Principle4-plunger linkage mechanism
Flow Range10ul/min-50ml/min
Fitting Size10-32 UNF thread, 1/16" tube fitting
Applicable Pressure≤40MPa
Pump Head MaterialPEEK
Dispense Volume Accuracy＞99.5%
Stroke Resolution2000 steps over full stroke: 0.00635 mm/step
